Investing in premium commercial water heating efficiency solutions is rapidly becoming the most effective way for modern asset managers to lower soaring operational overhead costs across North American facilities.
The Financial Reality of Commercial Thermal Demands
Domestic hot water distribution typically accounts for 25% to 30% of a standard commercial building's total annual energy consumption profile.
This massive energy footprint creates a direct vulnerability for property budgets when utility providers implement peak-hour demand surcharges and seasonal tariff increases.
Modern hospitality venues and multi-family complexes require thousands of gallons of continuous hot water every day to keep operations running smoothly.
When older atmospheric boiler systems struggle to maintain these temperatures, they burn excessive amounts of fuel and cause utility expenses to skyrocket.
Forward-thinking facility engineers are actively moving away from traditional baseline infrastructure toward smart low-emission alternatives.
This operational shift is driven by a strict corporate focus on measurable return on investment and long-term asset protection.
Many state governments now offer highly lucrative financial incentives to accelerate these mechanical upgrades for commercial property owners.
These financial packages include direct utility rebates, local energy efficiency grants, and federal tax deductions under the Section 179D energy efficient commercial buildings property standard.
By utilizing these programs, commercial businesses can significantly offset their upfront capital expenditure while locking in permanent energy reductions.
Inside the Engineering of Condensing Systems

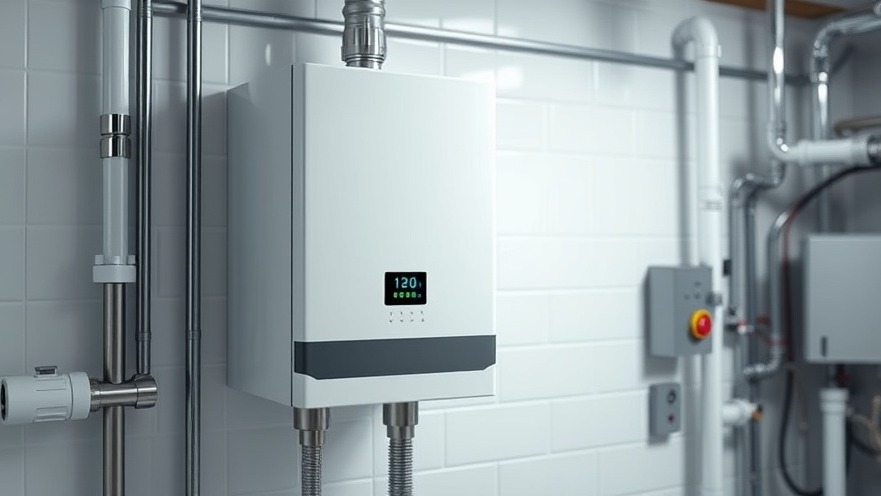

The launch of the A. O. Smith Adapt Premium Condensing Commercial Water Heater represents a major technical advancement for high-demand facility applications.
Traditional non-condensing water heaters let valuable thermal energy escape directly through exhaust vents at temperatures exceeding 300°F.
This wasted energy represents a significant financial loss that drives down the overall thermal efficiency of the mechanical room.
Condensing technology captures these hot exhaust gasses and routes them through a secondary heat transfer process to squeeze out every drop of usable heat.
This specialized process cools the combustion gasses below their dew point, causing water vapor to condense and release its latent heat back into the system.
The A. O. Smith Adapt commercial model achieves a highly impressive Uniform Energy Factor of 0.95 through this process.
This rating translates directly to an operational thermal efficiency of up to 96% under normal working conditions.
Operating at this level means that 96 cents of every single dollar spent on gas fuel goes directly into heating the water supply.
This extreme efficiency minimizes fuel consumption while drastically lowering the overall carbon footprint of high-volume facilities.
At the core of this engineering breakthrough is a patented heavy-duty single stainless-steel helical heat exchanger.
This design is modeled directly after the long-trusted engineering found in the flagship Cyclone commercial water heating line.
The unique helical structure provides an optimized continuous fluid pathway that maximizes the internal surface area for heat transfer.
By using a single continuous coil, the manufacturer has successfully eliminated dozens of traditional joints and connection points.
Fewer weld points result in a highly robust heat exchanger with substantially lower risk of developing micro-fractures over time.
This specific metallurgical geometry provides exceptional resistance to internal thermal shock caused by sudden incoming cold water temperature drops.
Scalable Architecture and Installation Flexibility
Large-scale commercial operations require mechanical systems that can scale rapidly to handle fluctuating peak load demands.
The Adapt commercial system features an intelligent scalable cascade capability that permits up to 32 individual units to operate in tandem.
This advanced multi-unit network uses integrated communication cables to sequence the firing orders of the water heaters based on real-time flow demands.
When hot water demand is low, the master controller cycles down unnecessary units to prevent short-cycling and reduce hardware wear-and-tear.
During high-demand peak morning hours, the system smoothly ramps up additional units to maintain precise temperature stability across the building.
This configurations provides built-in mechanical redundancy that ensures zero operational disruption if one unit requires standard maintenance.
Contractors can also implement common-venting configurations for up to 12 units to simplify exhaust infrastructure.
This flexible venting system accommodates both 2-inch and 3-inch piping options to match existing building configurations perfectly.
An engineered outdoor vent cap kit enables universal outdoor installations, which saves valuable indoor square footage for facility operators.
The mechanical unit is also fully compatible with both 1/2-inch and 3/4-inch gas supply lines to minimize expensive structural pipe retrofitting.
Furthermore, each model arrives with an easy-to-use fuel-conversion kit to change operations from natural gas to liquid propane right in the field.
This flexibility simplifies inventory management for multi-site property portfolios operating across distinct geographic regions.
Mitigating the High Cost of Thermal Scale Formation
Hard water scale formation is one of the most destructive factors impacting commercial water heating infrastructure today.
When calcium and magnesium minerals are exposed to high temperatures, they precipitate out of the water and form a rock-hard layer on internal heat surfaces.
This accumulation acts as a thermal insulator that forces the burner to run much longer to heat the same volume of water.
According to industry data, just 1/4-inch of scale buildup can reduce overall operating efficiency by up to 40%.
This extra thermal stress causes the underlying metal components to overheat, leading to premature structural cracking and catastrophic tank failure.
To solve this persistent problem, A. O. Smith offers an optional kit featuring their advanced X3 Scale Prevention Technology.
This specialized inline system continuously alters the molecular structure of dissolved minerals before they enter the heat exchanger.
The minerals remain suspended as microscopic crystals that flow harmlessly through the system instead of binding to the stainless-steel surfaces.
Implementing this preventative tech can extend the operational lifespan of the heat exchanger up to three times compared to standard configurations.
đź’ˇ Pro Tip:
Always monitor the system's return loop water temperatures to ensure they stay
below 120°F when utilizing X3 Scale Prevention Technology. Keeping return temperatures
below this threshold maximizes the chemical mitigation process and protects the
stainless-steel geometry from localized mineral binding.
Maintaining this level of asset protection prevents expensive unscheduled downtime and eliminates the need for aggressive chemical descaling flushes.
Integrating Multi-Technology Decarbonization Systems
Modern facility directors are increasingly combining high-efficiency gas solutions with advanced electric heat pump systems to meet ambitious net-zero targets.
The strategic integration of Variable Refrigerant Flow systems alongside high-efficiency gas tankless units creates a powerful hybrid mechanical plant.
Variable Refrigerant Flow technology excels at zoning comfort across a facility by shifting thermal energy from hot zones to cool zones.
When these systems work in harmony with the Adapt water heater, the total facility efficiency climbs significantly.
This multi-technology framework is perfectly illustrated by real-world applications at sustainable destinations like the Hotel Marcel in New Haven.
The Hotel Marcel uses cutting-edge heat pump installations to maintain guest comfort while driving operational emissions down to zero.
When planning full-scale facility retrofits that integrate these premium water heaters with high-output solar arrays, building owners achieve compounding returns.
These clean-energy frameworks allow facilities to offset their electrical demands while utilizing smart gas tankless infrastructure for peak domestic hot water loads.
Managing these diverse mechanical assets requires a strict adherence to structured preventative maintenance protocols.
Facility engineers must conduct comprehensive quarterly inspections on all condensate neutralizer kits to ensure acidic runoff does not damage drain plumbing.
Technicians should also check the internal air filters and intake screens regularly to guarantee clean airflow for optimal fuel combustion.
Using built-in control displays allows on-site teams to review up to two separate recirculation schedules and check active error codes instantly.
Property managers can also add optional smart connectivity modules to monitor real-time water flow data and receive leak alerts remotely.
Investing in these predictive diagnostic systems transforms traditional maintenance from reactive firefighting into planned precision tasks.
The long-term asset protection gained from these automated safeguards far outweighs the initial capital layout.
Conclusion
Upgrading outdated mechanical infrastructure to high-efficiency condensing commercial water heaters is a proven strategy for reducing facility costs.
The advanced helical heat exchanger engineering and scalable cascading options provide commercial operations with unmatched reliability and thermal performance.
By combining these smart gas systems with sustainable tech and protective water treatment, facility directors protect their physical assets for decades.
Taking action now allows business owners to capitalize on premium tax incentives while permanently shrinking their daily energy consumption.
